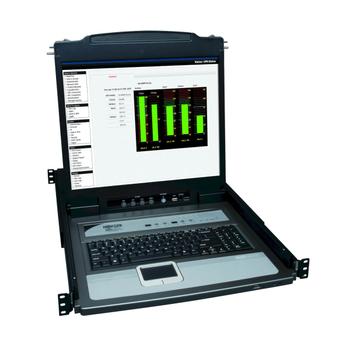

Console KVM Switch - 16-Port NetDirector 1U Rackmount Console KVM Switch w/19" LCD + 8 PS2/USB Combo Cables B020-U16-19-K Tripp Lite's 16-port Console KVM Switch with 19" LCD is the optimal solution for controlling multiple computers from one keyboard, mouse and monitor. This single unit combines a 16 port KVM switch, keyboard, 19" LCD monitor and touchpad; all in a mere 1U of rack space. Stores neatly in the rack, pulls out when needed. Control up to 512 computers from this single console by daisy-chaining additional 16 port KVM switches (model B022-U16). Easily switch ports using the On-Console push buttons, On Screen Display (OSD) or keyboard hot key commands. Includes eight, six foot Combo cable kits, which allow connection to either PS/2 or USB only servers...no adapters needed. Also features an extra HD15 and (2) PS/2 ports on the rear of the unit, which allows for connection of a Tripp Lite B051-000 IP Remote Access Unit or an external console. Two USB ports are provided on the front of the unit: One for attachment of a separate USB mouse, and one for attachment of USB peripherals, such as a flash drive, external hard drive, etc. that can be shared between severs. Features Integrated KVM console with 19” LCD Includes (8) P778-Series USB/PS2 Combo KVM Cable Kits Comes with an external console port, allowing an external local console (PS/2 or USB) or external IP access device (model B051-000) to be connected. An additional USB port is included on the front panel allows for the connection of an external mouse Dual Interface: supports computers with PS/2 or USB keyboards and mice Keyboard and mouse emulation (PS/2 and USB) allows for simultaneous booting of computers even when the console focus is elsewhere External USB port allows for sharing of USB peripherals among all ports on the KVM switch* Multiplatform support: supports Windows (2000, XP, Vista), Linux, Mac and Sun Supports multimedia USB keyboards for PC, Mac and Sun Daisy-chain up to 31 additional B022-U16 KVM switches to connect up to 512 computers Daisy-chained station position is automatically sensed – no need for manual DIP switch settings Station ID LED indicates the switches station position No software required Select a computer via push-buttons, Hotkeys or On Screen Display (OSD) menus Available OSD Languages: English, Spanish, French, German, and Japanese Auto-scan feature allows for continuous scanning of multiple computers Hot Pluggable: add/remove computers without powering down the KVM switch Two level password security: only authorized Users can view and control the connected computers (up to four Users and one Administrator) Superior video quality: supports resolutions on console up to 1280 x 1024 Rackmountable in 19” rack system (1U) Firmware upgradeable Specifications: OVERVIEW # Of Users 1 Console Yes Control OSD, Push Button, Hot Key Max CPU 512 Unit Dimensions (HWD/in.) 1.75 x 17 x 27 IP Remote Access YES WITH B050-000 OR B051-000 PHYSICAL Unit weight (lbs) 31.3 Mounting accessories included Yes Color Black Style 1U Rackmount LCD Monitor (in.) 19 ENVIRONMENTAL Relative Humidity 0 to 80% RH, Non-condensing Operating Temperature 32 Degrees F to 120 Degrees F (0 to 50 C) Storage Temperature -4 Degrees F to 140 degrees F (-20 to +60 C) CONNECTIONS Ports 16 Computer/Server Ports (x8) HD18 (Female) Daisy-Chain Port DB25 Male Firmware Upgrade Port RJ45 Included Cable (Side A) - Connector 1 HD18 Male Included Cable (Side B) - Connector 1 HD15 Male Included Cable (Side B) - Connector 2 PS/2 male Included Cable (Side B) - Connector 3 PS/2 male Included Cable (Side B) - Connector 4 USB A Male Other Ports - Port 1 USB A for Optional USB Mouse connection Other Ports - Port 2 USB A for Optional Flash Drive connection Remote Console Port HD18 Female + Dongle Cable Kit w/VGA, PS2, & USB Females FEATURES/SPECIFICATIONS Autoscan (Y,N) Y CERTIFICATIONS Approvals UL, cUL, CE, FCC, RoHSSystem Requirements PS/2 or USB computer P778-006 KVM Cable kit is required for each connected computer/server Supports Windows (2000, XP, Vista, 7), Linux, MAC, and SUN operating systems Package Includes 1 - B020-U16-19-K Console 16port KVM Switch w/19" LCD 8 - P778-006 PS2/USB Combo Cable Kits 1 - PS2/USB Combo Console Cable Kit 1 - RJ45 to DB9 Firmware Upgrade Cable 1 - C13 to 5-15P Power Cord 1 - CD w/Owners Manual 1 - Quick Start Guide 1 - Grounding Wire 1 - Rackmount Hardware Kit
