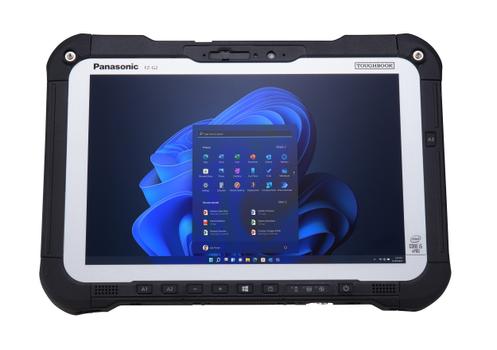

Panasonic TOUGHBOOK G2 (FZ-G2)
Panasonic pioneered the 10 inch rugged tablet market. With the Panasonic TOUGHBOOK® G2, we offer a modular and powerful product that has two expansion areas and quick release SSDs offering 84 different combinations to deliver the ultimate computing experience. The TOUGHBOOK G2 features a 2-in-1 design and keeps backward compatibility to most CF-20 and FZ-G1 docks making it possible for customers to upgrade technology while reusing existing docks and mounting hardware. Network capabilities are also enhanced with cellular options of 4G or 5G that has support for Sub6 and C-Band frequencies. With a keyboard option and up to a 15 hour battery life, it is aimed at professionals who need a rugged, yet versatile, device they can rely on in a wide range of challenging work environments.
Features:
- The AI (NPU) enabled Intel Core™ Ultra5 processor 135U (with vPro® Technology)
- Innovative modular design with two expansion areas and a quick-release SSD Quick-release
- SSD storage with 512GB or 1TB or 2TB OPAL SSD
- Optional bridge battery enables hot-swap battery replacement for continuous use
- Optional 5G with Sub6, C-Band or 4G
Specifications:
SOFTWARE
- Windows® 11 Pro
- Panasonic Utilities and Recovery Partition
- Waves MaxxAudio®
- Enterprise ready driver packages including
- CAB files and one-click driver bundles
- COM Splitter Software
CERTIFICATIONS & DURABILITY
- MIL-STD-810H
- MIL-STD-461G
- IP65
- Optional ANSI hazardous location C1D2 (class 1 div 2) groups ABCD
- Magnesium alloy chassis encased with ABS and elastomer edges
- Built-in dual purpose handle & kickstand (on optional keyboard)
- Solid state drive heater
- Quick-release storage drive
- Removable battery
- Optional rotating hand strap
- Reinforced locking port covers
- Raised corner guards for LCD impact protection
- Replaceable screen protector
CPU
- Intel® Core™ Ultra5 processor 135U (with Intel vPro® Technology)
- 12 Cores, with Max Turbo Frequency 4.4 GHz, 12MB cache. Intel® AI Boost NPU (AI Parallel Processor)
- Intel® Core™ i7-1270P vPro™ Processor
- 12 Cores, with Max Turbo Frequency 4.8 GHz, 18MB cache
STORAGE & MEMORY
- Factory installed 16GB or 32GB RAM (DDR5) (DDR4)
- 512GB or 1TB or 2TB Quick-release OPAL NVMe SSD with heater
DISPLAY
- 10.1" WUXGA 1920 ×1200
- Capacitive gloved multi touch + digitizer
- Direct bonding
- 2-1000 NIT
- Anti-reflective (AR) screen treatment
- Intel Graphics
- Intel Iris Xe Graphics
- Supports up to 5 monitors
- Concealed Mode; Day/Night Mode
AUDIO
- Integrated dual array microphone with AI noise reduction
- Waves MaxxAudio®
- Integrated 88db speakers (front-facing)
- On-screen and button volume and mute controls
CAMERAS
- 1080p webcam w/privacy cover & dual array mic
- Infrared with Windows Hello support
- 13MP, 8MP rear camera with auto focus with LED illumination
- Optional thermal camera (FLIR Lepton 3.5)
KEYBOARD & INPUT
- IP55 2 button digitizer pen (right click & erase), stylus holder, tether and cleaning cloth
- Supports glove mode and rain mode
- 8 tablet buttons (6 user-definable including A1/A2/A3 buttons)
- On-screen QWERTY keyboard
- Optional emissive English keyboard (mechanical or rubber membrane), or Spanish keyboard:
- Backlit (color-selectable) with 4 adjustable levels
- 81-key with dedicated Windows® key
- Gen1 resistive touchpad with scrolling
INTERFACE
- On the tablet:
- USB-C Thunderbolt™ 4, 40 Gbps 3A (PD,DP)
- USB-A 5Gbps
- Optional 2nd USB-A 0.5Gbps
- 1Gbps Ethernet RJ-45
- Optional True Serial Dongle D-sub 9-pin
- Dual SIM (Nano-SIM 4FF x1, eSIM x1)
- Optional MicroSD Slot
- Optional Fingerprint Reader with Active Directory
- On the optional keyboard:
- Docking Connector 24-pin
- USB-C 5Gbps
- USB-A 5Gbps
WARRANTY
- 3-year limited warranty, parts and labor
WIRELESS
- Optional 4G EM7595, EM7511 (both up to 600Mbps)
- 4G (LTE, LTE-A)
- Multi carrier (AT&T, FirstNet,Verizon)
- Satellite GPS & CBRS Band 48 Capable
- Optional 5G EM9190 (up to 4.1 Gbps)
- 4G (LTE, LTE-A), 5G (Sub6,C-Band, mmWave)
- Multi carrier (AT&T, FirstNet, Verizon)
- Satellite GPS & CBRS Band 48 Capable
- Optional dedicated GPS (u-blox NEO-M9J, NEO-M8J11)
- Dual antenna pass-through
- Intel® Wi-Fi 6E AX211 (up to 2.4 Gbps)
- Bluetooth® v5.3(Class 1) (Low Energy Audio)
- Airplane mode Fn key (on optional keyboard)
SECURITY FEATURES
- Intel® Hardware Shield
- Secured-core PC
- TPM v.2.0
- NIST BIOS compliant
- Persistence® technology by Absolute in BIOS
- Kensington cable lock slots x2 (on tablet and optional keyboard)
- Optional Fingerprint Reader with Active Directory
- Optional insertable Smart Card CAC reader
- Optional contactless Smart Card CAC reader
- 13.56MHz (ISO 14443 A/B, ISO 18092)
POWER
- Li-Ion battery:
- 15 hours (tablet), 14.5 hours (clamshell)
- 10.8V, 6600mAh typical (6300mAh min)
- Optional bridge battery: 1 minute hot swap time
- Battery charging time: 3 hours
- AC Adapter: AC 100V-240V 50/60Hz, Auto Sensing/Switching worldwide power supply
DIMENSIONS & WEIGHT
- 11.0" x 7.4" x 1.1" (tablet only)
- 2.9 lbs. (4.9 lbs. with optional keyboard)
INTEGRATED OPTIONS
- 5G EM9190 or 4G EM7595, EM7511 modem
- Dedicated GPS (u-blox NEO-M9J, NEO-M8J)
- Optional emissive mechanical keyboards FZ-VEKG21LM (English), FZ-VEKG21LP (Spanish), rubber membrane FZ-VEKG21RM (English)
- User Replaceable SSD for Ultra5 based G3mk3 models
- 512GB OPAL SSD ..............FZ-VSDG25123
- 1TB OPAL SSD ..................FZ-VSDG21T23
- 2TB OPAL SSD ..................FZ-VSDG22T23
- User Replaceable SSD for i7 based G2mk2 models
- 512GB OPAL SSD ..............FZ-VSDG25122
- 1TB OPAL SSD ..................FZ-VSDG21T22
- 2TB OPAL SSD ..................FZ-VSDG22T22
- Top Expansion Area xPAK's
- Barcode Reader ..................FZ-VBRG231M, FZ-VBRG211M
- 2nd USB-A ..........................FZ-VUBG211U
- 2nd LAN ..............................FZ-VLNG211U
- True Serial Dongle ...............FZ-VSRG211U
- Thermal Camera ..................FZ-VTG211PU
-MicroSD ...............................FZ-VSMG221U
- Rear Expansion Area xPAK's
- Insertable Smart Card .........FZ-VSCG211U
- Contactless Smart Card ......FZ-VRFG211M
- Fingerprint Reader with ......FZ-VFPG222M
- Active Directory and local storage
