| Mobile Computing Platform | Intel® Core™ i5-1245U vPro™ processor (optional Intel® Core™ i7-1270P vPro™*) |
| Operating System | Windows 11 Pro |
| RAM | 16GB DDR4 (optional 32GB RAM*) |
| Storage | 512GB OPAL NVMe SSD (optional 1TB Quick Release SSD*) |
| Graphic Chip | Intel® UHD Graphics |
| LCD | 10.1" Active Matrix (TFT) IPSa colour LCD 1920 x 1200 (WUXGA) sunlight-viewable glove & rain mode enabled capacitive touchscreen (up to 1000cd/m²) |
| Bluetooth™ | 5.1 + EDR Class 1 |
| Wireless LAN | Intel® WI-Fi6 AX201 |
| Mobile Broadband* | 5G / 4G LTE |
| GPS* | U-Blox NEO-M8 |
| Sound | Intel® High Definition Audio subsystem support, stereo speaker |
| Front Camera | 2 megapixel with IR / privacy shutter (Windows Hello compliant) |
| Rear Camera | 8 megapixel with autofocus and LED flash |
| Configuration port** | Micro SD Card Slot, Serial, 2D Barcode Reader, 2nd USB 2.0, 2nd LAN, Thermal by FLIR |
| Rear Expansion Bay Area*** | Smart Card Reader, HF-RFID (NFC) Reader, Fingerprint Reader |
| USB A | x1 (USB 3.2: 5Gbps) |
| USB Type-C | x1 (Thunderbolt 4: 40Gbps) |
| LAN | x1 |
| DC In | x1 |
| Port Replicator | x1 |
| Dual Antenna Connector | x1 |
| Power Management | Hot swap, standby function, ACPI BIOS |
| AC Adapter | Input: 100V - 240V AC, 50Hz/60Hz, Output: 15.6V DC, 7.05A |
| Battery | Standard Battery: Li-Ion 11.4V, 4360mAh, Extended Battery*: Li-ion 10.8V, 6300mAh |
| Battery Life | Standard Battery approx 7.5 hours (Mobile Mark™ 25), Extended Battery* approx 12 hours (Mobile Mark™ 25) |
| Security | TPM (TCG V2.0 compliant) Password security (supervisor password, user password, hard disc lock) Integrated hardware security lock slot |
| Dimensions (WxHxD) | 279 mm x 188 mm x 23.5 mm |
| Weight | Approx 1.19kg |

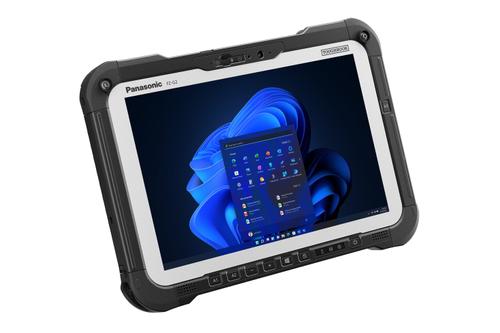

| Standard Configuration | FZ-G2mk2, 16GB RAM, 512GB OPAL SSD, standard battery pack, IP55 digitiser pen |
| Included in the box | Power supply, power cord, display cleaning cloth and user manual |
| Dust Resistance | IP6x |
| Water Resistance | IPx5 |
| Drop Resistance | 180cm**** |
| Operating Temperature | MIL-STD810H, -29°C to +63°C**** |
| Footnote | *Optional
**One option exclusively possible in configuration port, to be decided at time of purchase
***One option exclusively possible in rear expansion bay area, available as accessory
****Tested by an independent third party lab following MIL-STD810H Method 516.8 Procedure IV for transit drop test and Method 501.7 and 502.7 Procedure Ⅱ for operation temperature test. May differ depending on models and options. |
