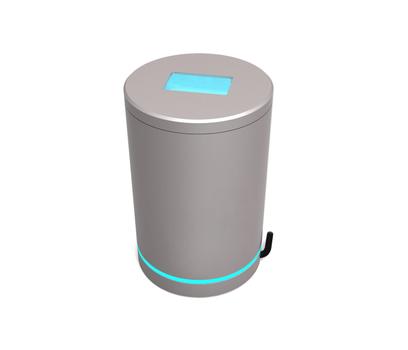

Newland NVF260
Designed for healthcare applications, the NVF260 is perfect for tracking surgical instruments. The NVF260 provides excellent performance in reading DPM barcodes with a new generation of industrial decoding algorithms. Its' blue diffuse illumination helps to avoid reflection from metal surfaces.
A Medical Grade Device
With its advanced illumination system and ability to scan DPM barcodes, the NVF260 is perfect for healthcare applications. The special medical-grade coating can withstand sterilization with 100% alcohol solutions without any damage to the surface.
Features:
- DPM Decoding.
- With a new generation of industrial decoding, the NVF260 is excellent at reading DPM barcodes even on curved surfaces.
- Advanced Illumination.
- The NVF260's blue illumination ring helps to reduce bottlenecks in the scanning process by avoiding the reflection from materials with metal surfaces.
- Impressive Image Sensor.
- With a 1280x800 megapixel imager, the NVF260 can decode up to 3-millimetre barcodes.
- Industrial Design.
- Built with an IP64 housing, the NVF260 easily resists water and dust. The medical-grade housing is also able to be sterilized without alcohol damage.
Specifications:
Data Capture
- 1D : EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Code 128, Code 39, Codabar, UCC/EAN 128, AIM128, Interleaved 2 of S, ITF-14, ITF-6, Standard 2 of 5, Matrix 2 of 5, COOP 25, Industrial 2 of 5, Plessey, MSI Plessey, Code 11, Code 93, ISBT128, Deutsche 14, Deutsche12
- 2D : QR Code, Data Matrix
- Image Sensor : 1280x800 CMOS
- Illumination : Diffuse: ring of blue LED
- Depth of Field DataMatrix (10mil) : 0-25mm
- Depth of Field QR (15mil) : 0-30mm
Performance
- Minimal Print Contrast : 25%
- Scan Angle Roll : 360°
- Scan Angle Pitch : 45°
- Scan Angle Skew : 45°
- Field of View Horizontal : 32.7°
- Field of View Vertical : 20.7°
Physical
- Dimensions (mm) : Height: 100mm, Diameter: 65mm
- Weight : 347g
- Interfaces : USB
- Notifications : Beep, LED indicator
- Input Voltage : 5VDC±5%
- Current @ 5VDC Operating : 230mA (typical), 330mA (max)
- Power Consumption : 1150mW (typical)
Environmental
- Operating Temperature : -20°C to 60°C (-4°F to 140°F)
- Storage Temperature : -40°C to 70°C (-40°F to 158°F)
- Humidity : 5% to 95% (non-condensing)
- Electro Static Discharge (ESD) : ±8 KV (direct discharge); ±15 KV (air discharge)
- Drop : 1.2m
- IP Rating : IP64
Certifications
- Hardware : FCC Part15 Class B, CE EMC Class B, RoHS
