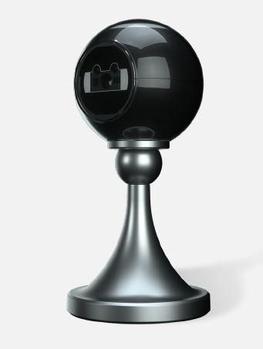

NEWLAND FR50 Pearl 2D CMOS Mega Pixel FS-NEWLAND

Newland FR50 Pearl

• Megapixel Barcode Scanner
  Armed with Newlands cutting-edge 2D megapixel barcode technology, the FR50 Pearl has an excellent scanning performance on 1D and 2D barcodes. Its higher resolution means even small barcodes can be read from a longer distance. Inverse and rectangular 2D codes, even if printed with challenges, are no issue.
• Sophisticated design.
  Designed to be the jewel in the crown, the FR50 Pearl is made with high-quality materials and presented to be the next generation scanner. As a stunner in both in black or white (project only), it blends into its environment perfectly, or can function as a true eyecatcher. The stationary scanner is particularly suited to non-food retail or boutique point-of-sale countertops.
• IR & light sensors.
  The FR50 Pearl has an excellent combination of both an IR sensor and a light sensor. The light sensor works best in well-lit conditions, sensing the changes in light as a barcode is presented to it. The IR sensor has a shorter range but activates the scanner even in a poorly lit environment.
• Automatic Exposure Control (AEC)
  The sensor in the FR50 Pearl automatically adjusts the duration of the light it projects, adapting to the glare reflected back off the barcode. Switching from scanning a code printed low-contrast on paper to scanning codes presented on highly reflective phone screens, is no issue. This makes the Pearl a great solution for customer-facing applications.
• Mount anywhere.
  The FR50 Pearl's magnetic socket clamps easily and firmly to a variety of mounting options. Offering not only versatility in mounting style and function, the simple design of the scanner's connection point also makes for effortless cleaning with our recommended cleaning solutions.
• Safe aiming.
  Whether staff-attended or self-service, the FR50 Pearl uses safe LED aiming to help position the presented barcodes without any of the health risks associated with laser-class aiming solutions.

• 1D : All major 1D symbologies, including EAN-13, EAN-8, UPC-A, UPC-E, Code 128, Code 39, Codabar, UCC/EAN 128, RSS, ITF, ITF-14, ITF6, Standard 25, Matrix 25, COOP 25, Industrial 25, Plessey, MSI Plessey, Code 11, Code 93, Code 49, Code 16K.
• 2D : All major 2D symbologies, including PDF417, QR Code, Data Matrix, AZTEC, CSC, Maxicode, Micro QR, Micro PDF417, GM, Code One.
• Image Sensor : 1280 x 800 CMOS
• Illumination : Red LED
• Aiming : Green LED
• Scan Modes : Sense mode, Continuous mode
• Depth of Field EAN 13 (13mil) : 55-360mm
• Depth of Field Code 39 (5mil) : 80-170mm
• Depth of Field PDF417 (6.67mil) : 55-160mm
• Depth of Field DataMatrix (10mil) : 50-170mm
• Depth of Field QR (15mil) : 40-210mm

• Minimal Print Contrast : 30%
• Scan Angle Roll : 360°
• Scan Angle Pitch : ±55°
• Scan Angle Skew : ±55°
• Field of View Horizontal : 51°
• Field of View Vertical : 32°

• Dimensions (mm) : Scanner: 68(W) x 61.8(D) x 68.2(H) mm; Stand: 75(W) x 75(D) x 153.5(H) mm
• Weight : Scanner: 202g; Stand: 324g
• Interfaces : USB HID & USB CDC
• Notifications : Beep, LED indicator
• Input Voltage : 5VDC±5%
• Current @ 5VDC Operating : 306mA (typical), 311.5mA (max.)
• Current @ 5VDC Standby : 173.9mA
• Power Consumption : 1530mW (typical)

• Operating Temperature : -20℃ to 60℃ (-4°F to 140°F)
• Storage Temperature : -40℃ to 70℃ (-40°F to 158°F)
• Humidity : 5% to 95% (non-condensing)
• Electro Static Discharge (ESD) : ±14 kV (air discharge), ±8 kV (direct discharge)
• IP Rating : IP42

• Standard : Desktop Stand, Mounting Plate

• Configuration Tools : EasySet

• Hardware : FCC Part 15 Class B, CE EMC Class B, RoHS, IEC62471

• Standard : 5 years

• NLS-FR5080-B-20 : FR50 Pearl 2D CMOS Mega Pixel Presentation scanner (black) with 280 cm direct straight USB cable, stand and mounting plate. Green LED Aimer, Red light & IR sensor.
