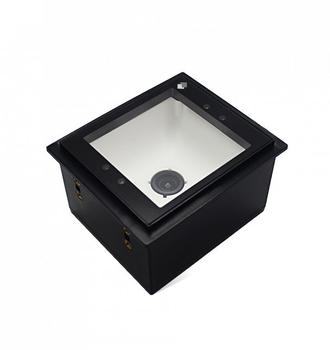

NEWLAND FM30 HIND 2D CMOS MEGA PIXEL FIX MOUNT READER FOR KIOSK INTEG PERP

Newland FM3080 Hind

• Snappy on-screen barcode capture.
  The FM3080 Hind is armed with Newland’s sixth-generation of UIMG® technology. This CPU-based scanner excels at reading on-screen barcodes that contain a large amount of data.
• Instant visual feedback.
  With up to 4 color options available, the white scanning window of the FM3080 Hind can light up each scan. It can be programmed for different barcodes, a successful read, or to match your company brand.
• Small form factor.
  Dimensions of 78.7 x 67.7 x 47.5mm make the FM3080 Hind the smallest of the FM30 series. As a result, it takes up minimal space in a kiosk or at the POS.
• IR and light sensors.
  In order to achieve higher productivity, the FM3080 Hind has a combination of an IR sensor and light sensor. This combination creates improved sensitivity in activating the scanner to scan the presented barcode.
• IP65 sealing.
  The FM3080 Hind possesses a high IP-rating of IP65, making it resistant to water and dust.
• Anti Reflection
  The updated FM3080 Hind has a coating on the underside of the glass to reduce the reflection and glare, making reading barcodes from screens, even snappier and user friendly.

• 1D : All major 1D symbologies, including EAN-8, EAN-13, UPC-A, UPC-E, ISSN, ISBN, Codabar, Standard 2 of 5, Code 128, Code93, ITF-6, ITF-14, GS1 Databar, MSI-Plessey, Code 39, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code 11, Plessey.
• 2D : All major 2D symbologies, including PDF417, Data Matrix, QR Code, Micro QR Code, Aztec.
• Image Sensor : 800x800 CMOS
• Illumination : White LED
• Scan Modes : Sense Mode, Continuous Mode
• Depth of Field EAN 13 (13mil) : 0-190mm
• Depth of Field Code 39 (20mil) : 40-210mm
• Depth of Field Code 128 (10mil) : 0-185mm
• Depth of Field QR (20mil) : 0-130mm

• Minimal Print Contrast : 25%
• Scan Angle Roll : 360°
• Scan Angle Pitch : ±40°
• Scan Angle Pitch : ±40°
• Scan Angle Skew : ±40°
• Field of View Horizontal : 74°
• Field of View Vertical : 74°
• Scan Window : 50mm x 50mm

• Dimensions (mm) : 78.7(W)x67.7(D)x47.5(H)mm
• Weight : 132g
• Interfaces : RS-232, USB
• Notifications : Beep, LED indicator
• Input Voltage : 5VDC±5%
• Current @ 5VDC Operating : 185mA (typical), 193mA (max.)
• Power Consumption : 869mW (typical)

• Operating Temperature : -20℃ to 60℃ (-4°F to 140°F)
• Storage Temperature : -40℃ to 70℃ (-40°F to 158°F)
• Humidity : 5% to 95% (non-condensing)
• Electro Static Discharge (ESD) : ±15 kV (air discharge), ±8 kV (direct discharge)
• IP Rating : IP65

• Configuration Tools : EasySet

• Hardware : FCC Part15 Class B, CE EMC Class B change to FCC Part15 Class B, CE EMC Class B,RoHS

• Standard : 2 years

• NLS-FM3080V2-20 : FM30 Hind 2D CMOS Mega Pixel fixed mounted reader for kiosk integration, 3 Color LED index, optimized to read from cell phone & paper. Including data formatting & USB cable.
• NLS-FM3080V2-28 : FM30 Hind 2D CMOS Mega Pixel fixed mounted reader for kiosk integration, 3 Color LED index, optimized to read from cell phone & paper. Including data formatting &RS232 cable and multi plug adapter.
