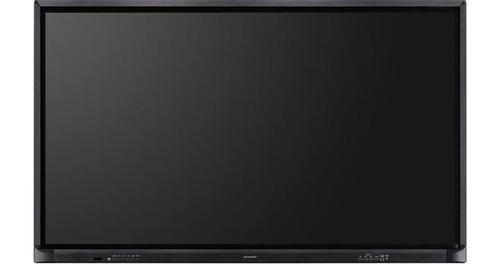

Sharp PN-70HC1E LCD 70" Infrared Touch Display Features: Keep everyone “eyes up” – present, create and collaborate with ease and precision. A natural Pen-on-Paper experience – using the passive pen stylus or finger to quickly highlight and annotate key information. A flexible way to teach – having the freedom to quickly and easily share the right information in the right way. Simply all you need – an integrated SoC (System on Chip) is included to enable effective ways of teaching and collaborative learning. Fast, intuitive controls – all the buttons needed to adjust and optimize the performance of the display are in easy reach. Specifications: DISPLAY Active Screen Area (W x H) [mm] 1,538.9 x 865.6 Screen Size [inch/cm] 70 / 176.6 Aspect Ratio 16:9 Pixel Pitch [mm] 0.401 Brightness [cd/m²] 350 Contrast Ratio (typ.) 4000:1 Viewing Angle [°] 178 / 178 (at contrast ratio > 10:1) Colour Depth [bn] 1,073 (10bit) Response Time (typ.) [ms] 8 (grey-to-grey) Supported Orientation Landscape GLASS Type Thermal-tempered, anti-glare coating Thickness [mm] 4 Haze Level [%] 3 ~ 8 Hardness [H] ≥ 8 RESOLUTION Native Resolution 3840 x 2160 CONNECTIVITY Input Video Analogue 2 x VGA Input Video Digital 3 x HDMI Input Audio Analogue 1 x 3,5 mm jack Input Control LAN 100Mbit Input Data 1 x USB 2.0 (Type-B); 2 x USB 2.0 (Type-A) Output Audio Analogue 1 x 3,5 mm jack Remote Control LAN; RS-232C (9-pin D-sub) Input Input Detect Last OPEN MODULAR INTELLIGENCE OPS Slot Slot Technology: Open pluggable specification (NEC / Intel OPS standard) OPS Max. Current / Power Consumption [A / W] 3.25 / 65 AIRSERVER EMBEDDED SCREEN MIRRORING SOLUTION AirPlay iOS, iPadOS and macOS Google Cast Android, Chrome OS and Google Chrome Miracast Android and Windows ELECTRICAL Power Consumption Eco/max. [W] 400 Eco (shipment setting), 400 Power Supply 100-240 V AC; 50/60 Hz ENVIRONMENTAL CONDITIONS Operating Temperature [°C] +5 to +35 Operating Humidity [%] 20 to 80 MECHANICAL Dimensions (W x H x D) [mm] 1,629 x 990 x 100 Weight [kg] 54 Bezel Width [mm] 25.5 (left, right and top); 53 (bottom) VESA Mounting [mm] 4 holes; 600 x 400 (FDMI); M6 TOUCH Number of Touches Real multi-touch up to 20 touches Touch Method Finger; Gloves; Stylus (≥ 3 mm) Supported Operating System Native Multi-Touch: Windows 7, Windows 8, Windows 10, Linux, Android; Default Mouse: Windows XP, Windows Vista, Mac OS X Data Interface USB-HID Palm Rejection no Windows Ink yes EMBEDDED COMPUTING Built-in Applications File Manager; PDF Viewer; Web Browser System Version Android 6.0 Internal Storage 8GB ROM AVAILABLE OPTIONS OPS Slot Intel® Atom, Celeron and Core CPUs Slot-in PCs ADDITIONAL FEATURES Audio Integrated Speakers (10 W + 10 W) Shipping Content 1x 180 cm USB Cable; 2 x Stylus; 2x AAA batteries; Cable Clamps; CD-ROM (User Guides/Manuals); Display; Remote Control; User Manual Warranty 3 years warranty incl. backlight; optional 4. + 5. year warranty extension 1 Operating Hours 16/7
