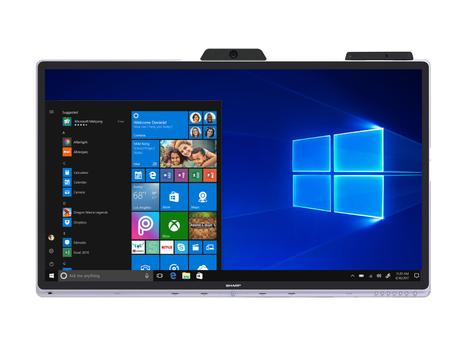

NEC PN-CD701 | 70"" | 3840x2160 | 350Nits | Capacitive Touch | Windows Collaboration Display

Sharp PN-CD701 LCD 70" Windows Collaboration Display

• Bring your own meeting (BYOM) – a simple, unified solution for instant start-up meetings using any device.
• Seamless, clutter-free connection – a single secure USB-C cable connects your device with the display to auto sync the built-in camera, speakers, mic and touch.
• Certified Windows Collaboration Display – a frictionless BYOM solution launches video meetings using your preferred conferencing platform.
• Natural touch, easy clean – the easy to clean flush screen design reduces parallax for a superb writing experience supporting Windows Ink.
• Smart space management – maximise comfort of your meeting spaces and maintain optimal environmental parameters using the in-built IoT sensors to manage analytics across your meeting spaces.

• DISPLAY
• Panel Technology UV² A with Edge LED backlight
• Active Screen Area (W x H) [mm] 1,538.9 x 865.6
• Screen Size [inch/cm] 70 / 176.6
• Aspect Ratio 16:9
• Brightness [cd/m²] 350, 350 (shipment setting)
• Contrast Ratio (typ.) 4000:1
• Viewing Angle [°] 176 / 176 (at contrast ratio > 10:1)
• Colour Depth [bn] 1.06 (10bit)
• Response Time (typ.) [ms] 6 (grey-to-grey)
• Supported Orientation Landscape
• GLASS
• Type Thermal-tempered, anti-glare coating
• Thickness [mm] 1.9
• Light Transmission [%] ≥ 88
• Hardness [H] 3H
• RESOLUTION
• Native Resolution
• 3840 x 2160
• CONNECTIVITY
• Input Video Digital 1 x HDMI (with HDCP); 2 x USB-C (with HDCP, 65 W)
• Input Audio Digital 1 x HDMI
• Input Control 1 x LAN 100Mbit
• Input Data 1 x USB 3.0 (Type-A Upstream); 2 x USB 3.0 (Type-C Upstream)
• PiP/PbP 4-Split
• SENSORS
• Room Sensors Air Quality (VOC) Sensor; Ambient Light Sensor; Humidity Sensor; Presence Sensor (H angle: 160°, V angle: 75°, Distance: 4 m); Temperature Sensor
• ELECTRICAL
• Power Consumption Eco/max. [W] 370 Eco (shipment setting), 370
• Power Savings Mode [W] < 0.5
• ENVIRONMENTAL CONDITIONS
• Operating Temperature [°C] +5 to +35
• Operating Humidity [%] 20 to 80
• MECHANICAL
• Dimensions (W x H x D) [mm] Without stand: 1,623.6 x 976.4 x 90
• Weight [kg] Without stand: 65
• Bezel Width [mm] Edge-to-edge flush design (no bezel)
• VESA Mounting [mm] 4 holes; 400 x 400 (FDMI); M6
• TOUCH
• Touch Technology PCAP
• Number of Touches Real multi-touch up to 10 touches
• Touch Method Conductive Passive Stylus (≥ 8 mm); Finger
• Supported Operating System Android; Linux; Mac OS; Windows
• Data Interface USB-HID
• Palm Rejection yes
• Windows Ink yes
• Operating System Native Multi-Touch: Android 6.0
• VIDEO CONFERENCE CAMERA
• Viewing Angle [°] 120 diagonal
• Resolution
• Output HD 3840p 30fps
• EMBEDDED COMPUTING
• Built-in Applications File Manager; Input Select
• System Version Android 6.0
• System Memory 16G RAM
• Internal Storage 4GB ROM
• MICROPHONE/ECHO-CANCELLING
• Array built-in 4 array
• Distance [m] 6
• AVAILABLE OPTIONS
• Accessories Trolley (Sharp L20PNSR780MEU); Wall mount (Sharp L20PNWALL90EU)
• ADDITIONAL FEATURES
• Special Characteristics Collaboration Display
• Safety and Ergonomics EMC Class B
• Audio Integrated Speakers (12 W + 12 W)
• Shipping Content 1 x Passive Stylus; 1x 8 m USB-C Cable 1; Cable Clamps; Display; Power Cable; Setup Manual
• Warranty 3 years warranty incl. backlight; optional 4. + 5. year warranty extension 2
• Operating Hours 24/7
• External Control Crestron Connected
