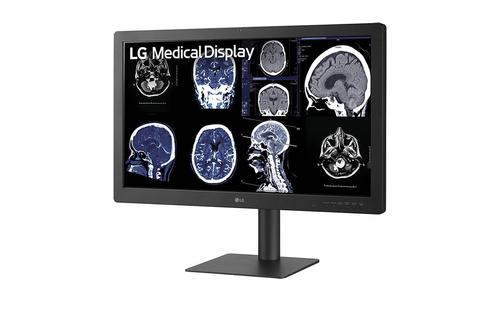

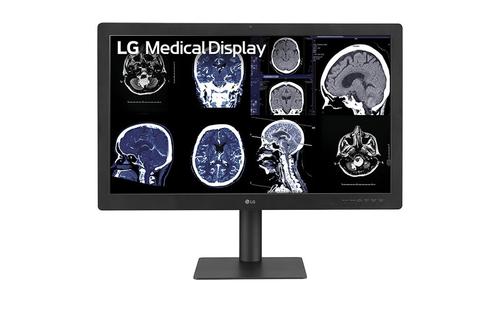

LG TFT LG Medical 31,5"" 32HQ713D-B Diagnostic Monitor
|
|
LG TFT LG Medical 31,5"" 32HQ713D-B Diagnostic Monitor
-
Skjermstørrelse
31.5"
-
Oppløsning
3840 x 2160
-
HD
4K Ultra HD
-
USB-C
0
-
DVI
0
-
DP
2
-
HDMI
0
-
Berøringsskjerm
Nei
-
Høyttalere
Nei
-
Skjermform
Flat
-
Høydejustering
Ja
-
Svivel
Nei
-
Svingtapp
Ja
-
Bruksområde
Personal display
|
Beskrivelse
Spesifikasjoner
31.5'' LG 8MP Diagnostic Monitor
32HQ713D-B
Accurate Image from Any Angle
The 31.5-inch 8MP IPS display facilitates precise diagnoses of medical images. The 178° wide viewing angle lets patients and doctors to see accurately reproduced images with minimal distortion.
Compatible with Every Device
The connection to the various types of devices is essential for the diagnostic monitor. Thanks to 32HQ713D’s multi resolution mode, you can adjust the resolution of monitor to optimize to the connected device.
Realistic Colour Reproduction
As LG 32HQ713D monitor adopts the clinical pathology mode with improved colour reproduction, can deliver images from the microscope vividly without colour distortion.
Sustained Picture Quality
Built-in Auto Luminance Calibration helps to increase productivity and efficiency. It converts automatically the medical images to more suitable images to make a exact diagnosis.
Multiple Signals on One Screen
PBP (Picture By Picture) with Dual controller, control multi devices connected to one screen with one keyboard or mouse, helps to increase convenience in review. You can review multiple information in parallel on one screen.
Designed for Comfort & Immersion
Its ergonomic stand, two-way pivot adjustment and narrow bezel can realize an optimized diagnostic workspace. Rotate two monitors in portrait and use side-by-side for the ultimate reading experience.
Specifications:
Panel
- Panel Type
-
IPS Black
- Inch (Aspect Ratio)
-
31.5-inch (16:9)
- Active Screen Size
-
698.9 x 393.8 (mm)
- Resolution
-
8MP (3840 x 2160)
- Surface Treatment
-
Anti-glare, 3H
- Colour Gamut (Typ.)
-
sRGB (CIE 1931) 100 %
- Viewing Angles (CR≥10)
-
178° (Right / Left), 178° (Up / Down)
- Brightness (Typ.)
-
1000cd/m²
- Brightness (Stabilization)
-
500cd/m²
- Colour Bit
-
10bit (8bit+A-FRC)
- Contrast Ratio (Typ.)
-
2000:1
- Response Time (GTG*)
-
14ms (GtG, Not Support OD)
Feature
- DICOM Compliant
-
Yes
- HW Calibration
-
Yes (SW Application: LG PerfectLum)
- Display Mode
-
Multi-resolution Mode (8/6/4MP), Focus View Mode, Light Box Mode, Pathology Mode
- Super Resolution+
-
Yes
VIDEO SIGNALS
- Input Terminals
-
DisplayPort x2
Connectivity
- USB
-
USB 3.0 2 Upstream, 2 Downstream
Power
- AC Input
-
100-240Vac, 50/60Hz
- Power Consumption (Max.)
-
120W
- Power Consumption (DC Off)
-
Less than 0.3W
User Convenience
- PBP / Dual Controller
-
Yes (2 PBP) / Yes
- Reader Mode / Flicker Safe
-
Yes / Yes
- Lighting
-
Yes
- Hot Key
-
Yes (6 keys)
- Presence Sensor
-
Yes
- Auto Luminance Sensor
-
Yes
PHYSICAL SPECIFICATION
- Weight (with Stand)
-
13.0kg (28.6lb)
- Weight (without Stand)
-
9.7kg (21.3lb)
- Adjustable Stand
-
Swivel: ±15° / Tilt.: -5°~15° / Height Range: 110mm
- Wall Mount Size
-
100 x 100 (mm)
| Skjermdiagonal | 80 cm (31.5") |
| Skjermoppløsning | 3840 x 2160 piksler |
| Naturlig sideforhold | 16:9 |
| Skjermteknologi | LED |
| Berøringsskjerm | Nei |
| HD-type | 4K Ultra HD |
| Paneltype | IPS |
| Skjermlysstyrke (typisk) | 1000 cd/m² |
| Oppdateringsresponstid | 5 ms |
| Anti-blendende skjerm | Ja |
| Skjermform | Flat |
| Kontrastforhold | 2000:1 |
| Synsvinkel, horisontal | 178° |
| Synsvinkel, vertikal | 178° |
| NVIDIA G-SYNC | Nei |
| AMD FreeSync | Nei |
| Innebygde høyttalere | Nei |
| Innebygd kamera | Nei |
| Markedsplassering | Medisinsk |
| Produktfarge | Sort |
| Innebygd USB-hub | Ja |
| Antall oppstrømsporter | 2 |
| Antall USB Type-A nedstrømsporter | 2 |
| HDMI | Nei |
| Antall DisplayPorts | 2 |
| Hodetelefon ut | Nei |
| VESA-montering | Ja |
| Panelmonterbart grensesnitt | 100 x 100 mm |
| Kabellåsport | Nei |
| Høydejustering | Ja |
| Justerbar høyde (maks) | 11 cm |
| Dreibar | Ja |
| Dreietapp/dreiemekanisme | -15 - 15° |
| Vippevinkelområde | -5 - 15° |
| Strømforbruk (maks.) | 120 W |
| Strømforbruk, av | 0,3 W |
| AC-inngangsspenning | 100 - 240 V |
| AC-inngangsfrekvens | 50/60 Hz |
| Vekt (med stativ) | 13 kg |
| Vekt (uten stativ) | 9,7 kg |
