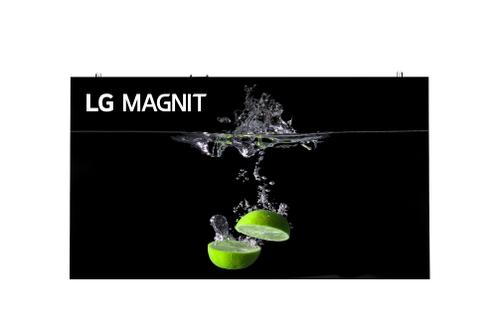

LG LED SIGNAGE P0.9MM INDOOR 640X360 PIXELS 600CD/M2 FRONT LFD
|
|
LG LED SIGNAGE P0.9MM INDOOR 640X360 PIXELS 600CD/M2 FRONT LFD
-
Bruksområde
Digital signage
|
LSAB009 LG MAGNIT
LG MAGNIT, Your First Micro LED
See the magnificent success that LG MAGNIT brings to business and recreation.
True Innovation behind New Depths
LG MAGNIT delivers immersive and eye-popping visuals
that make every viewing experience memorable.
Bring your imagination into life, through ultra-fine details
visualized by a colorful mosaic of Micro LED chips.
Features:
- Micro LED Display
- Pixel Pitch : 0.9 mm
- Brightness : 1,200 nit (Peak), 600 nit (Max)
- Contrast ratio (@10lux) : 33,000:1
- Cable-less Signal Transmission & Power Docking
Specifications:
Physical Parameter
- Pixel Configuration
: Micro
- Pixel Pitch (mm)
: 0.94
- Module Resolution (W x H)
: 160 x 180
- Module Dimensions (W x H, mm)
: 150 x 168.8
- Weight per Module (kg)
: 0.19
- No. of Modules per Cabinet (W × H)
: 4 x 2
- Cabinet Resolution (W × H)
: 640 × 360
- Cabinet Dimensions (W × H × D, mm)
: 600 × 337.5 × 44.9
- Cabinet Surface Area (m²)
: 0.2
- Weight per Cabinet (kg/cabinet)
: 7
- Weight per Square Meter (kg/m²)
: 34.6
- Physical Pixel Density (pixels/m²)
: 1,137,778
- Flatness of Cabinet
: ±0.5
- Cabinet Material
: Aluminum
- Service Access
: Front and Rear
Optical Parameter
- Max. Brightness (After Calibration)
: 600 / Peak 1,200
- Color Temperature (K)
: 3,200~9,300 / Default 7,300
- Visual Viewing Angle (Horizontal/Vertical)
: 160 × 160
- Brightness Uniformity
: 95%
- Color Uniformity
: ±0.02 Cx, Cy
- Contrast Ratio (10 lux)
: 33,000:1 @10lux
- Processing Depth (bit)
: 20 (HDR10, HDR10 Pro)
Electrical Parameter
- Power Consumption (W/Cabinet, Max.)
: 80
- Power Consumption (W/Cabinet, Avg.)
: 50
- Power Consumption (W/m², Max.)
: 395
- Heat Dissipation (BTU/h/Cabinet, Max.)
: 273
- Heat Dissipation (BTU/h/Cabinet, Avg.)
: 171
- Heat Dissipation (BTU/h/㎡, Max.)
: 1,348
- Power Supply (V)
: 100 to 240
- Frame Rate (Hz)
: 50 / 60
- Refresh Rate (Hz)
: 3,840
Operation Conditions
- Lifetime (Hours to Half Brightness)
: 100,000
- Operating Temperature (°C)
: 0 to +40
- Operating Humidity
: 10-80% RH
- IP rating Front / Rear
: IP50 / IP20
Certification
- Certification
: Safety 60950-1, EMC Class B, BS476 Part7 Class1
Environment
Controller
90 Degree Corner Cut
