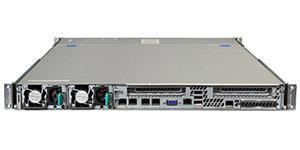

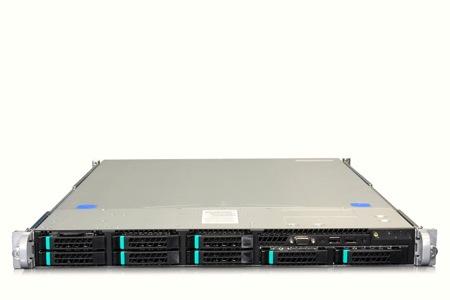

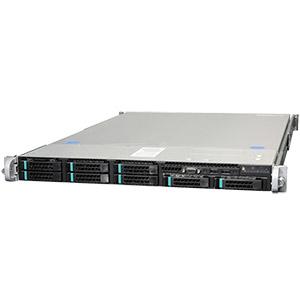

INTEL Server Barebone Intel C602

Intel® Server System R1208GZ4GCSAS

• Chassis Form Factor
• 1U Rack
• Chassis Dimensions
• 1.75” x 16.93” x 27.95”
• Board Form Factor
• Custom 16.5" x 16.5"
• Rack Rails Included
• Yes
• Socket
• Socket R
• Target Market
• Small and Medium Business

• Power Supply
• 750W AC Common Redundant Power Supply (Platinum Efficiency)
• Power Supply Type
• AC
• # of Power Supply
• 2
• Redundant Fans
• Supported
• Redundant Power
• Supported
• Heat Sink
• 2
• Heat Sink Included
• Yes
• Backplanes
• Included

• Integrated Intel® Server System with 8 SAS ports and HW RAID standard, Includes: (1) Intel® Server Board S2600GZ4 in a 1U chassis, (1) Airduct, (1) Standard control panel, (1) Front 1xVGA and 2xUSB in Optical Disk Drive bay, (8) 2.5” Hot Swap Drive Carriers, (2) Right angle to straight SFF8087 to SFF8087 cables 585mm, (2) CPU heatsinks, (2) risers: 1x16 PCIe FHHL slot on each, (1) RMS25CB080 RAID module, (2) 750W AC Power Supply, (1) Intel® Remote Management Module 4 (key and NIC) preinstalled, (1) Value rail kit

• # of 2.5" Hard Drives
• 8
• 2.5" Hard Drive Support
• Supports 8 hot-swap 2.5" SAS/SATA 6G drives standard with HW RAID
• Intel® Server Management Software
• Yes

• Memory Types
• DDR3 ECC UDIMM, RDIMM, LRDIMM up to 1600 speed
• # of DIMMs
• 24
• Max Memory Size (dependent on memory type)
• 768 GB

• Integrated Graphics
• Yes

• PCIe x16 Gen 3
• 2
• Intel® IO Expansion Module PCIe x8 Gen 3
• 1
• Intel® Internal IO Expansion Module PCIe x8 Gen 3
• 1

• # of USB Ports
• 5
• # of SATA Ports
• 10
• RAID Configuration
• Hardware RAID support up to 6/60
• # of Serial Ports
• 2
• Integrated LAN
• 4x 1GbE
• # of LAN Ports
• 4
• Optical Drive Support
• Yes
• Integrated SAS Ports
• 8
• Embedded USB (eUSB) Solid State Drive Option
• Yes
• Integrated InfiniBand*
• No

• Max CPU Configuration
• 2

• Intel® Remote Management Module Support
• True
• Integrated BMC with IPMI
• IPMI 2.0
• Intel® TPM Version
• 1.2
• Intel® Intelligent Power Node Manager
• Yes
• Intel® On-Demand Redundant Power
• Yes
